Servos
Adding the device

Adding the device

Important

Adding a servo to an Arduino Uno or Arduino Nano disables the PWM capability of pin D9 and D10.

Open the Controller Management dialog

Click on the Extras menu and select Controller Management to open the Controller Management dialog.

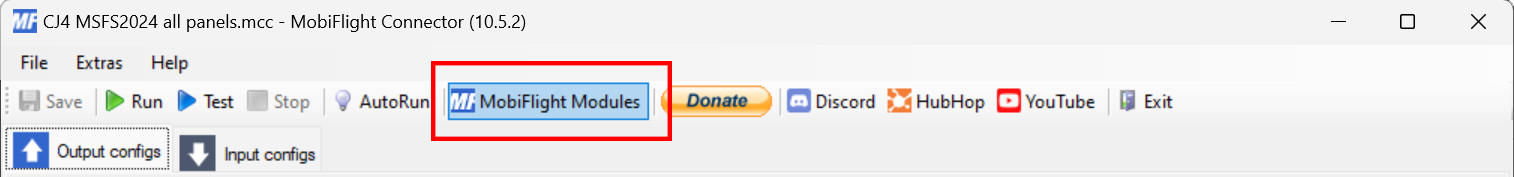

Screenshot of the Extras menu with the Controller Management menu item selected.

Add the servo

Click on the board the device is connected, then select Servo from the Add device menu.

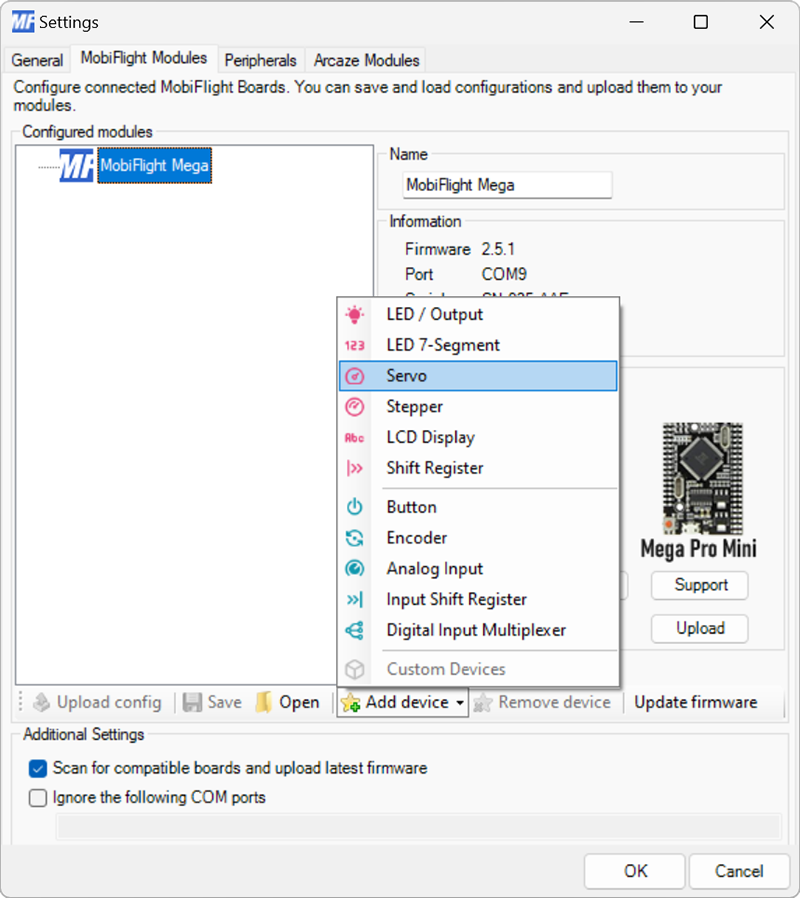

Screenshot of the menu open with the Servo item highlighted.

Configure the servo

Use the DIN line dropdown to specify the board pin the servo is connected to.

Provide a meaningful name for the servo in the Name field. This name is shown in the output configuration screens when assigning the servo to a flight simulator output.

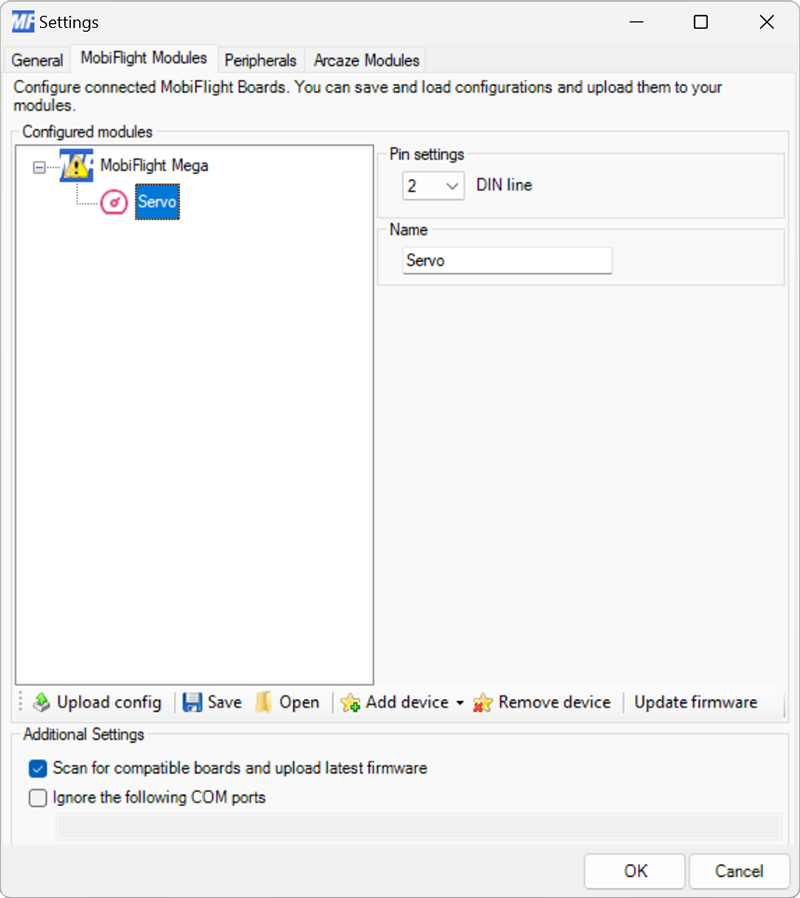

Screenshot of the settings for a servo, with pin 2 selected and Servo as the name.

Upload the changes to the board

Click the Upload config button at the bottom of the MobiFlight Modules tab to upload the modified configuration to the board.

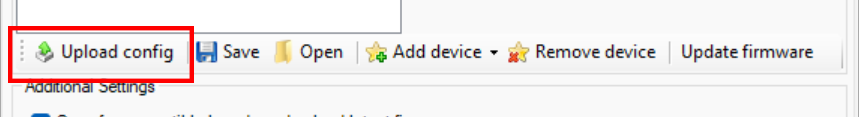

Screenshot of the MobiFlight Module dialog with the Upload config highlighted.

Close the MobiFlight modules dialog

Click the OK button to close the MobiFlight modules dialog and return to the main app window.
