Adding the device
Tip
Three-position switches are added to MobiFlight as two separate button devices. Repeat the below steps twice to add two buttons, one mapped to each pin used by the three-position switch.
Open the Controller Management dialog
Click on the Extras menu and select Controller Management to open the Controller Management dialog.
Add the button or switch

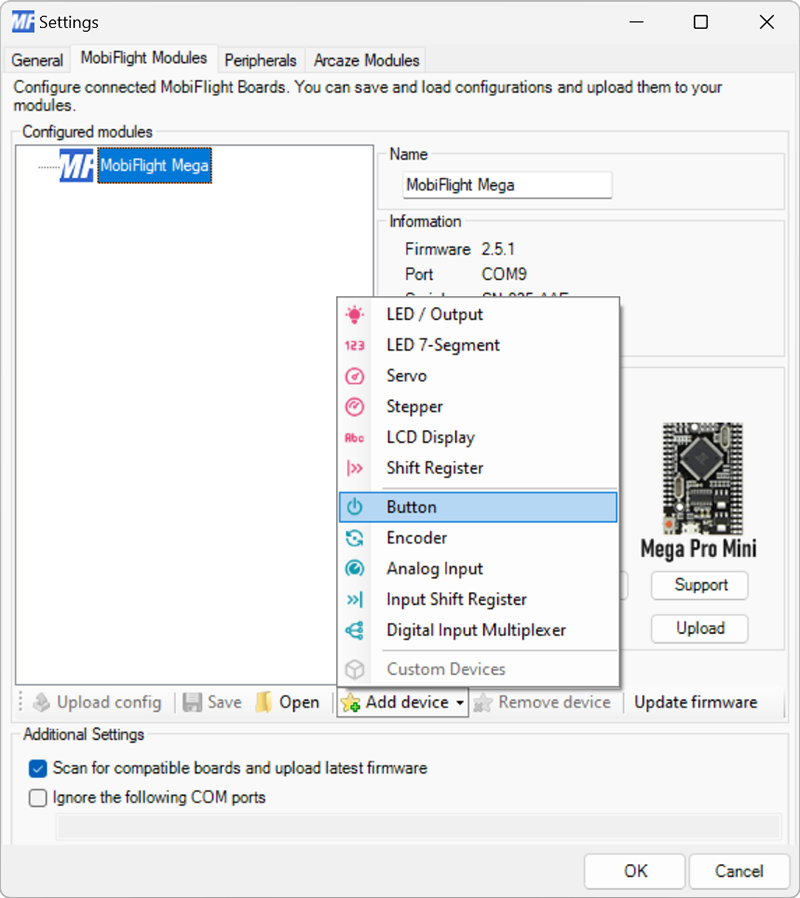

Click on the board the device is connected to, then select Button from the Add device menu. The same device type is used for all button and switch variations.
Configure the button

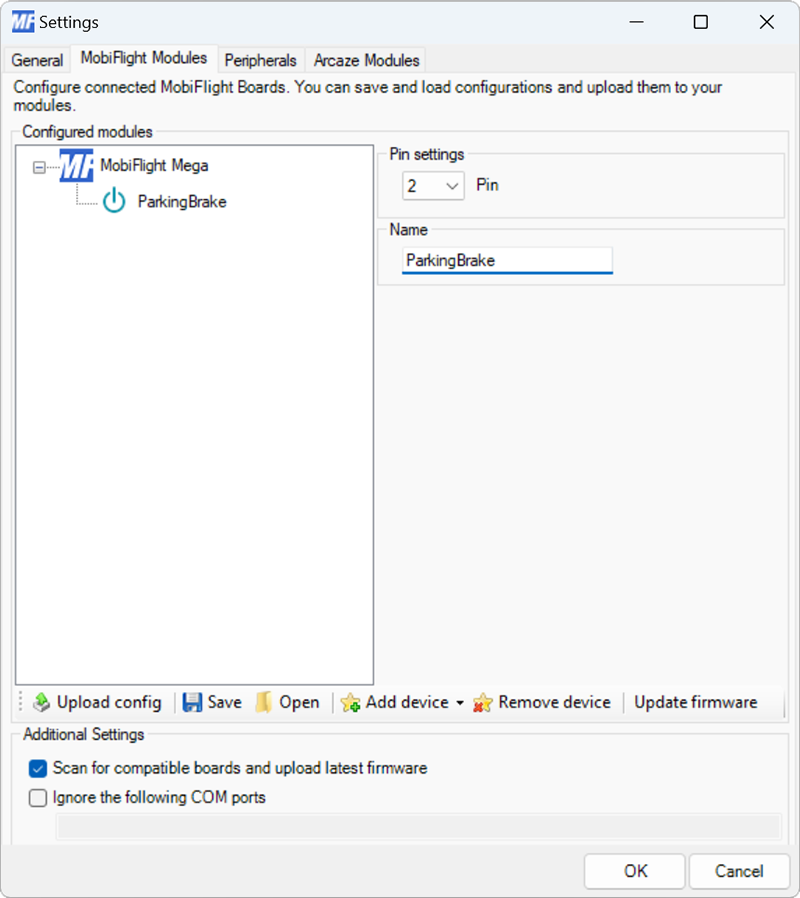

Use the Pin settings dropdown to specify the board pin the button is connected to.
Provide a meaningful name for the button in the Name field. This name is shown in the input configuration screens when assigning the button to a flight simulator input.
Upload the changes to the board
Click the Upload config button at the bottom of the MobiFlight Modules tab to upload the modified configuration to the board.
Close the MobiFlight modules dialog
Click the OK button to close the MobiFlight modules dialog and return to the main app window.
