Devices
LEDs
Adding the device

Adding the device

Open the Controller Management dialog

Click on the Extras menu and select Controller Management to open the Controller Management dialog.

Screenshot of the Extras menu with the Controller Management menu item selected.

Add the LED

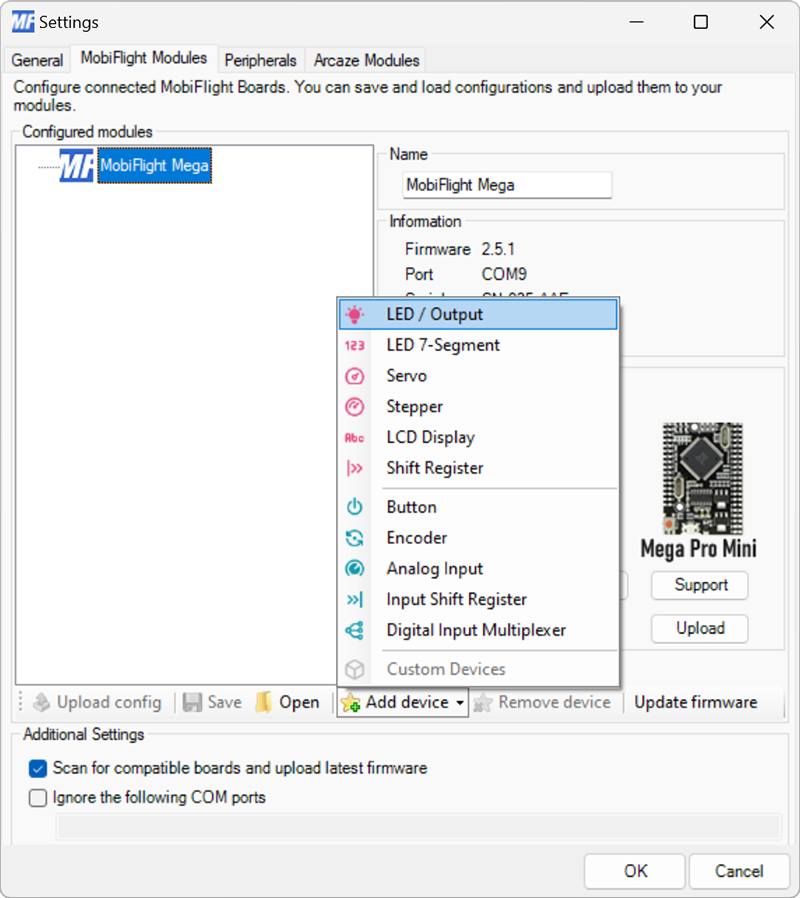

Click on the board the device is connected to, then select LED / Output from the Add device menu.

Screenshot of the menu open with the LED / Output item highlighted.

Configure the LED

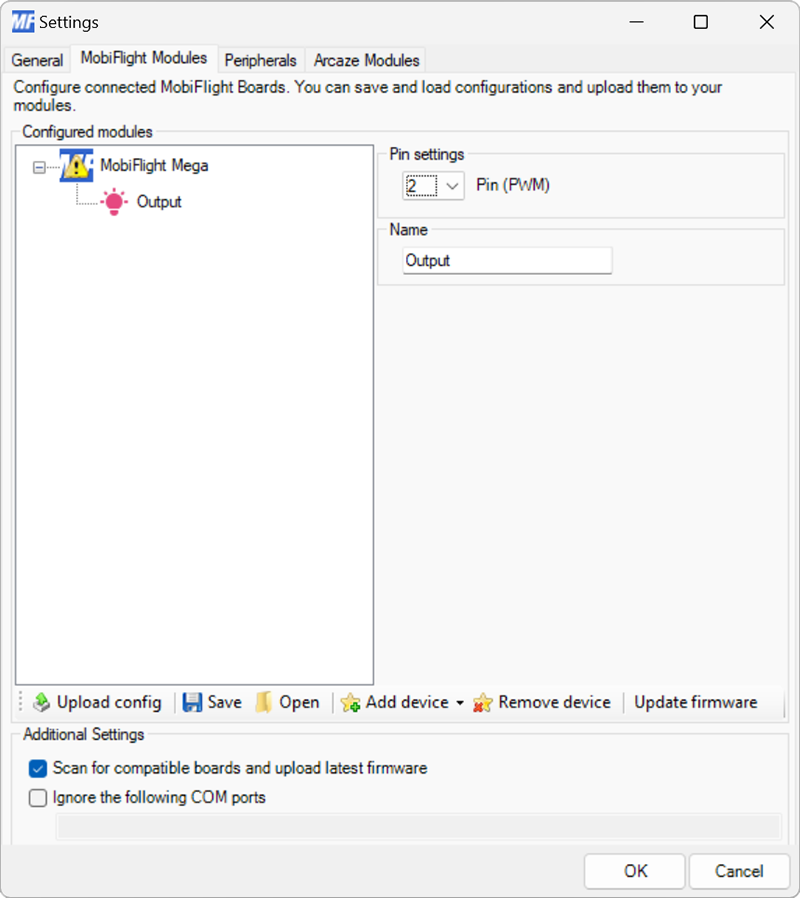

Use the Pin settings dropdown to specify the board pin the LED is connected to.

Provide a meaningful name for the LED in the Name field. This name is shown in the output configuration screens when assigning a flight simulator value to the LED.

Screenshot of the settings for an LED, with pin 2 selected and Output as the name.

Upload the changes to the board

Click the Upload config button at the bottom of the MobiFlight Modules tab to upload the modified configuration to the board.

Screenshot of the MobiFlight Module dialog with the Upload config highlighted.

Close the MobiFlight modules dialog

Click the OK button to close the MobiFlight modules dialog and return to the main app window.
